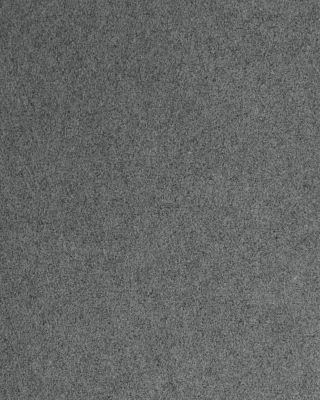

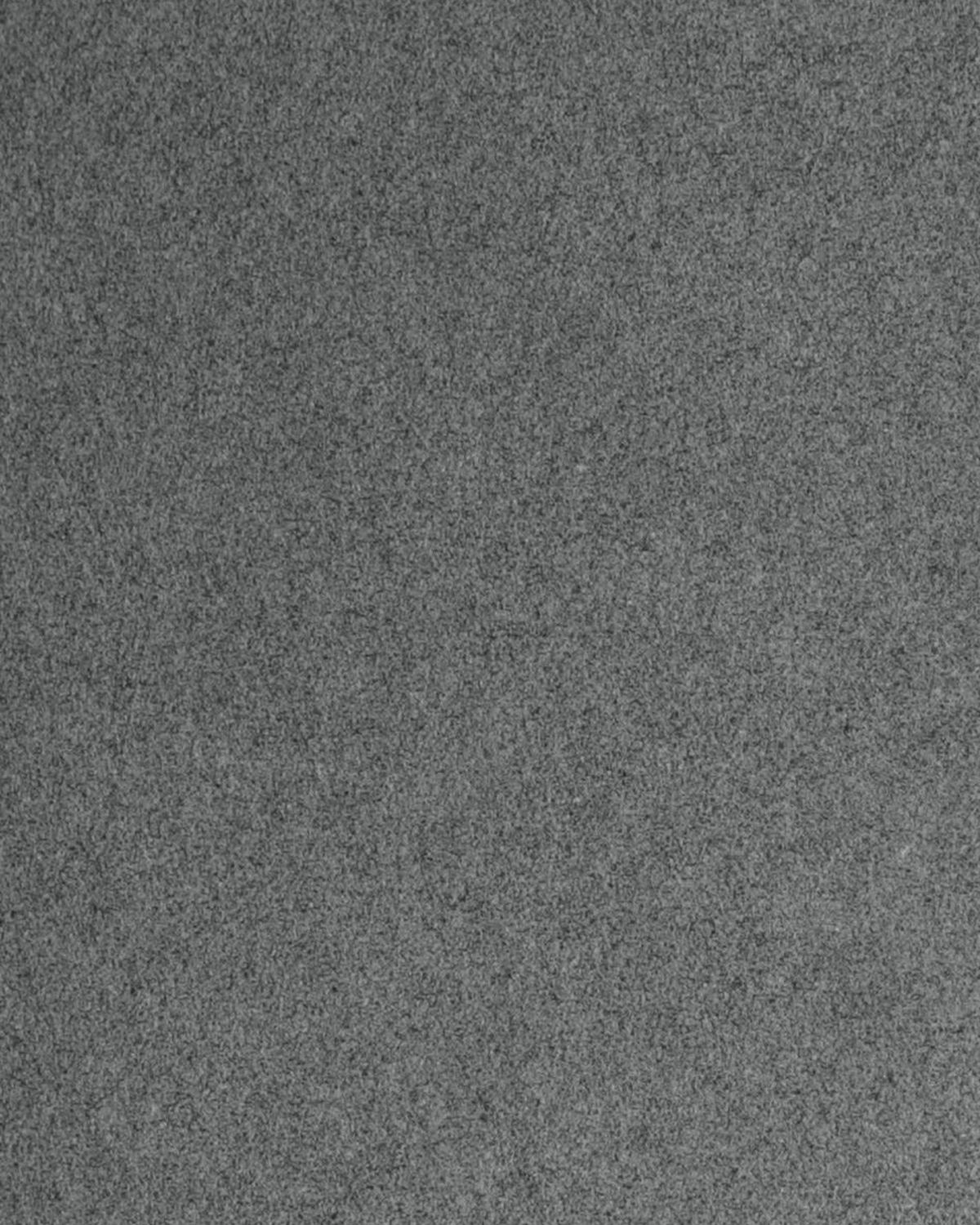

GLASSMATE®-XL Graphite

Our premium graphite material offers a tighter microstructure and the highest hardness in the GLASSMATE® portfolio to improve wear resistance and glass surface quality.

  • Average particle size of less than 1 micron provides premiere material strength and resistance to damage
  • Increased material strength resists deformation caused during rigorous manufacturing
  • Fine surface finish creates precision threads that meet tight tolerance process specifications
  • Improved wear-resistance characteristics extend product life, minimizing costly replacements and downtime

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

  • Read More Read Less

Interested in GLASSMATE®-XL graphite?

Contact Us

Interested in GLASSMATE®-XL graphite?

Contact Us

Interested in GLASSMATE®-XL graphite?

Contact Us

Applications

  • Conditions that lead to extreme wear
  • Pick up of heavy containers
  • Precision thread pick up
  • Productions that have longer run times
  • Long handling component lifetimes

Specifications

Particle size
 1 µm (40 µin)
Apparent density
 1.74 g/cm3 (0.063 lb/in3)
Compressive strength 162 MPa (23,500 psi)
Flexural strength1 95 MPa (15,250 psi)
Shore hardness 88
Coefficient of thermal expansion  8.1 µm/m°C (4.5 µin/in°F)
Thermal conductivity2 77 W/m-K (45 Btu-ft/hr/ft2°F)
Purity <3000 ppm ash
Oxidation threshold3 450°C (842°F)

1Measured using three-point bend method. 2Approximate values taken at room temperature; as temperature increases, thermal conductivity decreases. 3Oxidation threshold defined as temperature at which oxidation weight loss after 24 hours is approximately 1%. (Size 0.5" x 0.5" x 1").

Documentation

Grade Chart

download-pdf
GLASSMATE® Graphite Grades Table
