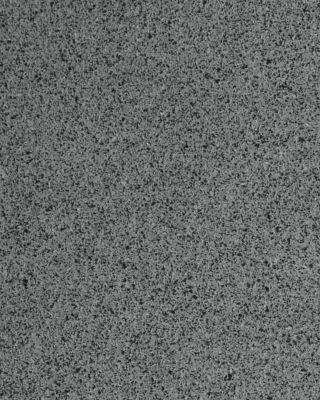

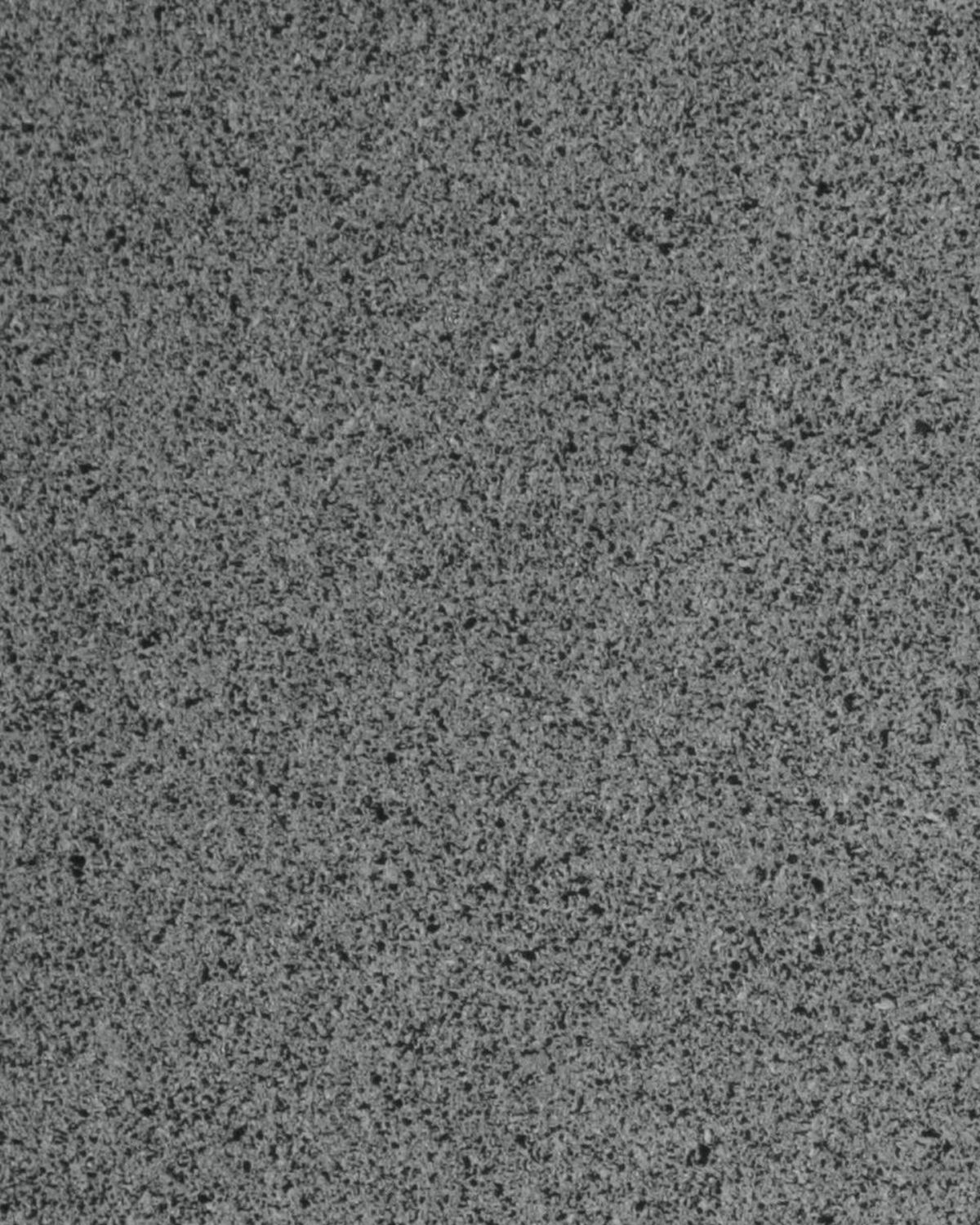

GLASSMATE®-GM Graphite

Strong and durable, this graphite material is ideal for precision processes with elevated wear rates such as thread pickup and long production runs where repeatability is paramount.

  • Average particle size of less than 3 microns provides high material strength and resistance to damage
  • Fine surface finish creates precision threads that meet tight tolerance process specifications
  • Improved wear-resistance characteristics extend product life, minimizing costly replacements and downtime

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

  • Read More Read Less

Interested in GLASSMATE®-GM graphite?

Contact Us

Interested in GLASSMATE®-GM graphite?

Contact Us

Interested in GLASSMATE®-GM graphite?

Contact Us

Applications

  • Precision thread pick up
  • Low tolerance parts
  • Longer length production runs

Specifications

Particle size 3 μm (120 μin)
Apparent density 1.74 g/cm3 (0.63 lb/in3)
Compressive strength 130 MPa (18,800 psi)
Flexural strength1 92 MPa (13,350 psi)
Shore hardness 72
Coefficient of thermal expansion 8.1 µm/m°C (4.5 µin/in°F)
Thermal conductivity2 85 W/m-K (50 Btu-ft/hr/ft2°F)
Purity <3000 ppm ash
Oxidation threshold3 450°C (842°F)

1Measured using three-point bend method. 2Approximate values taken at room temperature; as temperature increases, thermal conductivity decreases. 3Oxidation threshold defined as temperature at which oxidation weight loss after 24 hours is approximately 1%. (Size 0.5" x 0.5" x 1")

Documentation

Grade Chart

download-pdf
GLASSMATE® Graphite Grades Table
Download Now

Videos

GLASSMATE® Glass Handling
