EDM-C3® Graphite

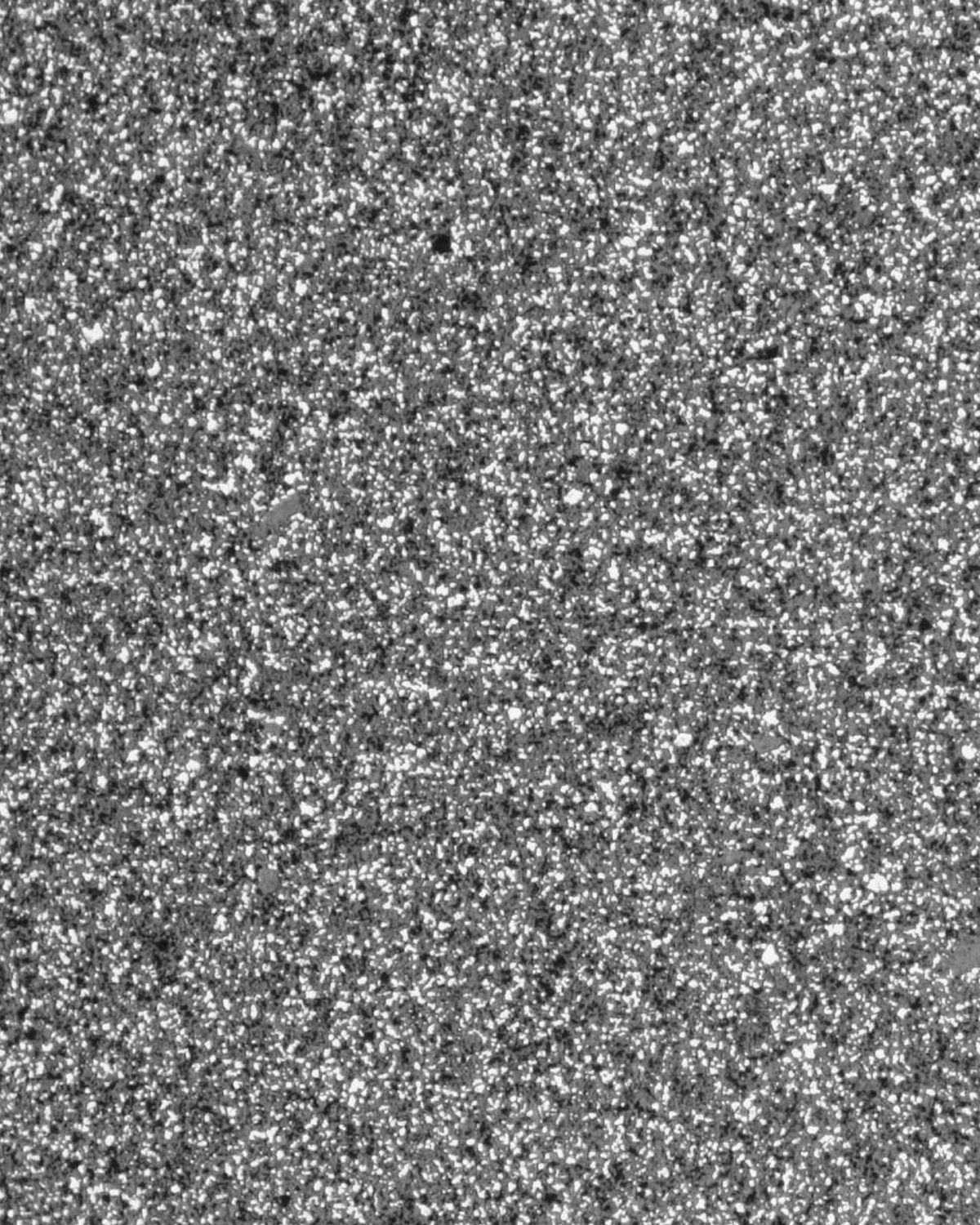

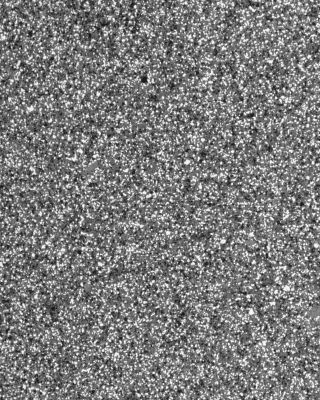

EDM-C3® graphite is a premium, Ultrafine grade graphite infiltrated with copper. This grade is unequaled for fabrication of fragile electrodes.

  • Average particle size of less than 5 microns provides high strength and resistance to damage
  • Infiltrated with copper to decrease electrical resistivity maximizes energy output for manufacturing of difficult materials
  • Provides the optimal performance of speed, wear, and surface finish to balance production speed and product lifetime
  • Ideal for electrode fabrication in subprime conditions such as poor flushing or when the operator is inexperienced

Available for order as billets,  semi-finished rods, blocks, and plates.

  • Read More Read Less

Interested in EDM-C3 graphite?

Contact Us

Interested in EDM-C3 graphite?

Contact Us

Applications

  • Fine detailed electrodes where strength is critical
  • Threading electrodes
  • Aerospace metal cutting
  • Carbide machining
  • Small hole drilling

Specifications

Average particle size
 <5 µm
Flexural strength 20,300 psi (1,427 kg/cm²)
Compressive strength 28,350 psi (1,993 kg/cm²)
Hardness 66 shore
Electrical resistivity 127 µΩin (3.2 µΩm)
