EDM-C200® Graphite

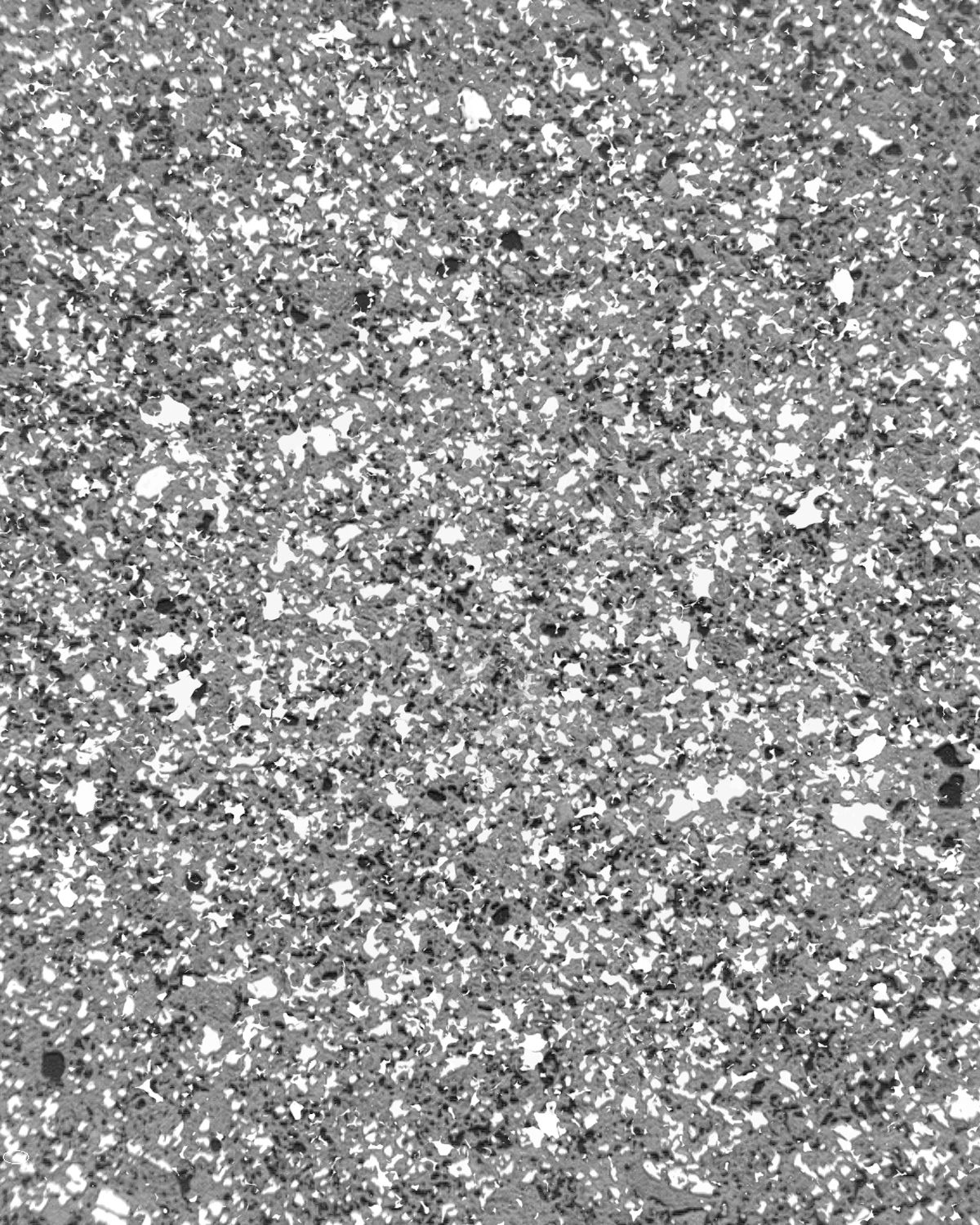

EDM-C200® graphite is a premium, Superfine grade infiltrated with copper that offers excellent metal removal rates and good wear resistance.

  • Average particle size of less than 10 microns improves strength and resistance to damage
  • Infiltrated with copper to decrease electrical resistivity and maximize energy output for manufacturing of difficult materials
  • Excellent metal removal rate shortens production times
  • Good resistance to wear increases time between replacements

Available for order as billets,  semi-finished rods, blocks, and plates.

  • Read More Read Less

Interested in EDM-C200 graphite?

Contact Us

Interested in EDM-C200 graphite?

Contact Us

Applications

  • Finely detailed electrodes with excellent surface finishes
  • Wire cut electrodes
  • Plastic injection molds

Specifications

Average particle size
 10 µm
Flexural strength 12,100 psi (851 kg/cm²)
Compressive strength 23,200 psi (1,631 kg/cm²)
Hardness 62 shore
Electrical resistivity 114 µΩin (2.9 µΩm)
