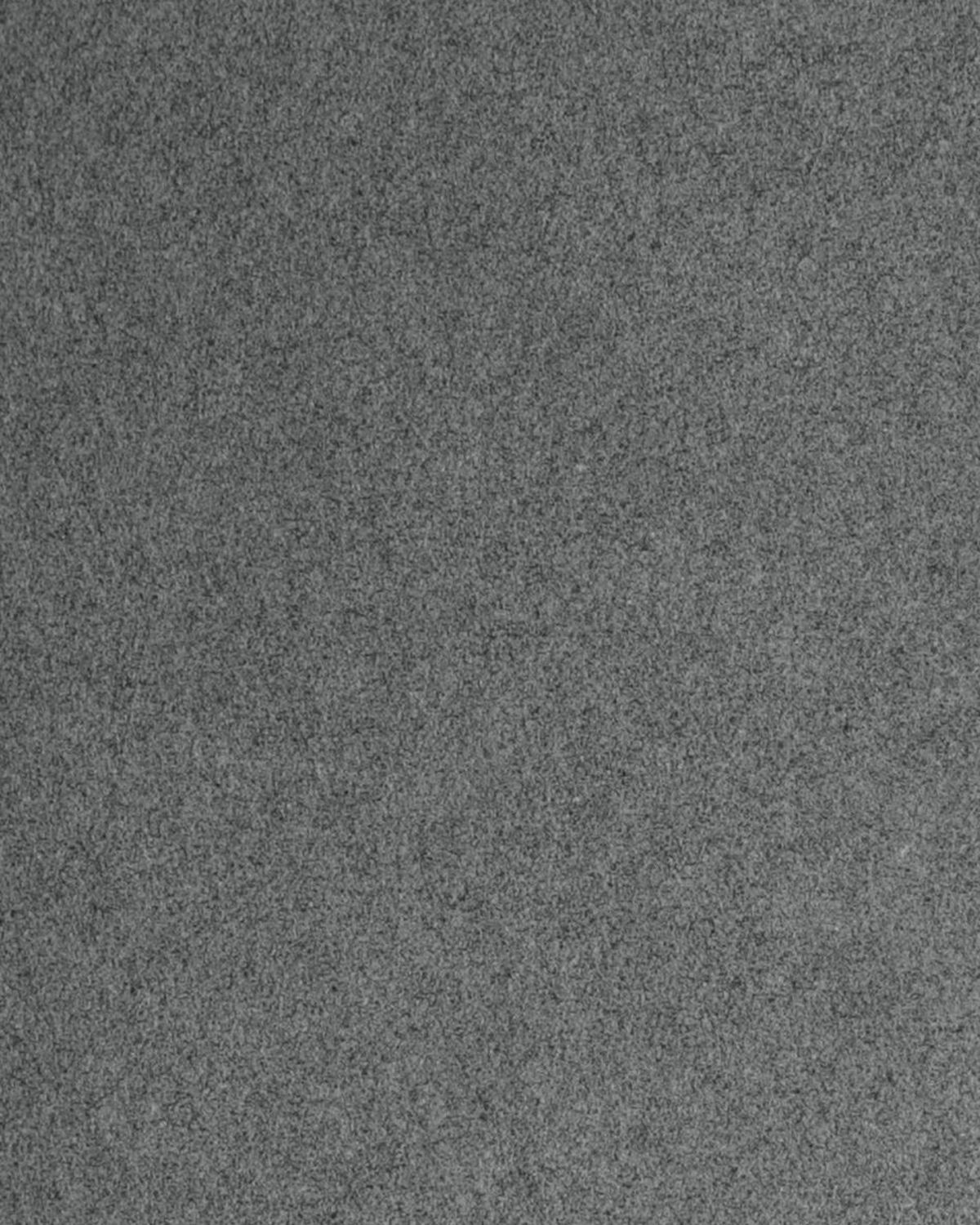

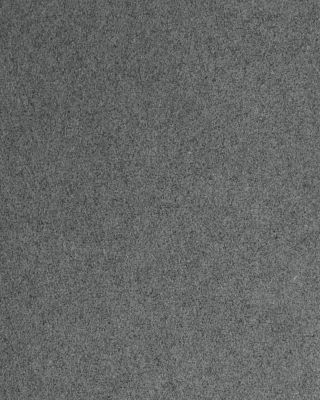

EDM-AF5® Graphite

Our EDM-AF5® graphite is the premier Angstrofine graphite electrode material available on the market today with an average particle size of less than 1 micron. This gives this grade advanced properties that exceed those with larger particle sizes.

  • Average particle size of less than 1 micron provides superior strength and resistance to damage
  • Fine surface finish (7Ra) reduces imperfections, minimizing the introduction of defects into the mold
  • Excellent metal removal rate shortens production times allowing for higher production rates
  • High resistance to wear minimizing replacement needs and reduces cost of ownership

Available for order as billets,  semi-finished rods, blocks, and plates.

  • Read More Read Less

Interested in EDM-AF5 graphite?

Contact Us

Interested in EDM-AF5 graphite?

Contact Us

Interested in EDM-AF5 graphite?

Contact Us

Applications

  • Fine detailed electrodes for engraving
  • Delicate and fragile electrodes
  • Hard to machine detail
  • Threading electrodes
  • Intricate mold and die fabrication

Specifications

Average particle size
 <1 µm
Flexural strength 14,500 psi (1,019 kg/cm²)
Compressive strength 22,100 psi (1,554 kg/cm²)
Hardness 83 shore
Electrical resistivity 850 µΩin (21.6 µΩm)
