EDM-3® Graphite

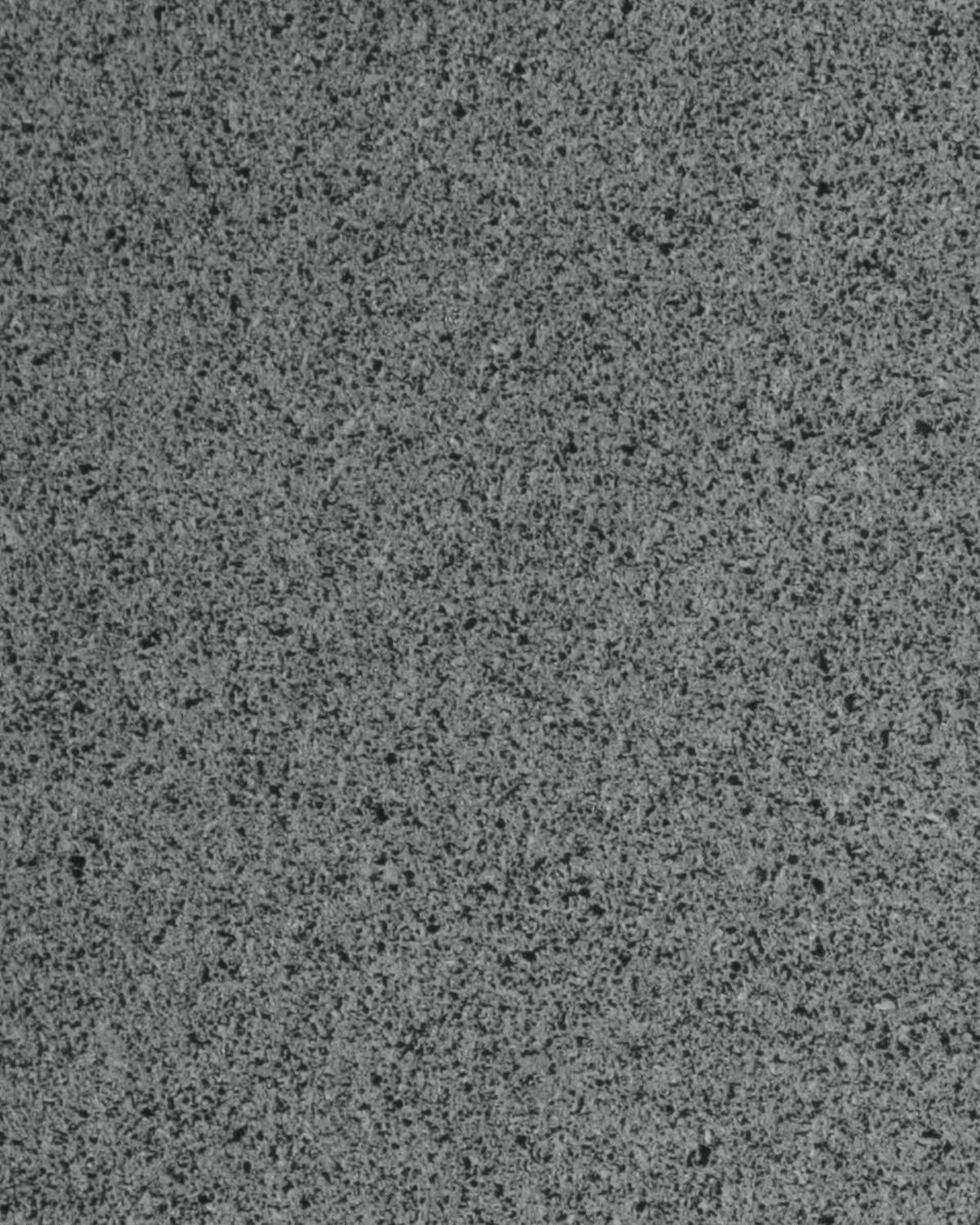

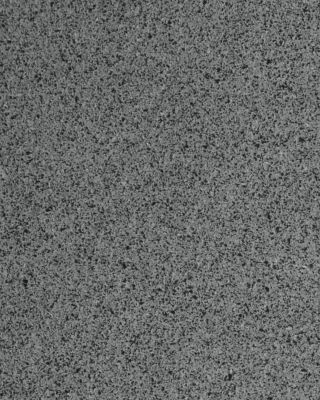

Our EDM-3® is an Ultrafine graphite that offers high strength with outstanding wear and fine surface finish characteristics easily machined to thicknesses of 0.1 mm or less.

  • Average particle size of less than 5 microns provide high strength and resistance to damage
  • Fine surface finish reduces imperfections and allows for detailed machining of intricate
  • Excellent metal removal rate shortens production times and increases productivity
  • Improved wear-resistance characteristics extend product life, minimizing replacements and downtime

Available for order as billets,  semi-finished rods, blocks, and plates.

  • Read More Read Less

Interested in EDM-3 graphite?

Contact Us

Interested in EDM-3 graphite?

Contact Us

Interested in EDM-3 graphite?

Contact Us

Applications

  • EDMing of fine detailed electrodes
  • IC mold applications
  • Plastic injection molds
  • Threading electrodes
  • Aerospace metal cutting

Specifications

Average particle size <5 µm
Flexural strength 13,300 psi (935 kg/cm²)
Compressive strength 18,100 psi (1,273 kg/cm²)
Hardness 73 shore
Electrical resistivity 615 µΩin (15.6 µΩm)

Documentation

Grade Chart

download-pdf
EDM Graphite Grades
Download Now

Article

download-pdf
EDM Effect on Surface Integrity
Download Now

Case Study

download-pdf
Making EDM Profitable
Download Now

Flyer

download-pdf
EDM Distributors
Download Now

Article

download-pdf
An Added Layer of EDM Knowledge
Download Now

Manual

download-pdf
EDM Graphite
Download Now

Article

download-pdf
How to EDM Steel and Copper Alloy Simultaneously
Download Now
