EDM-200® Graphite

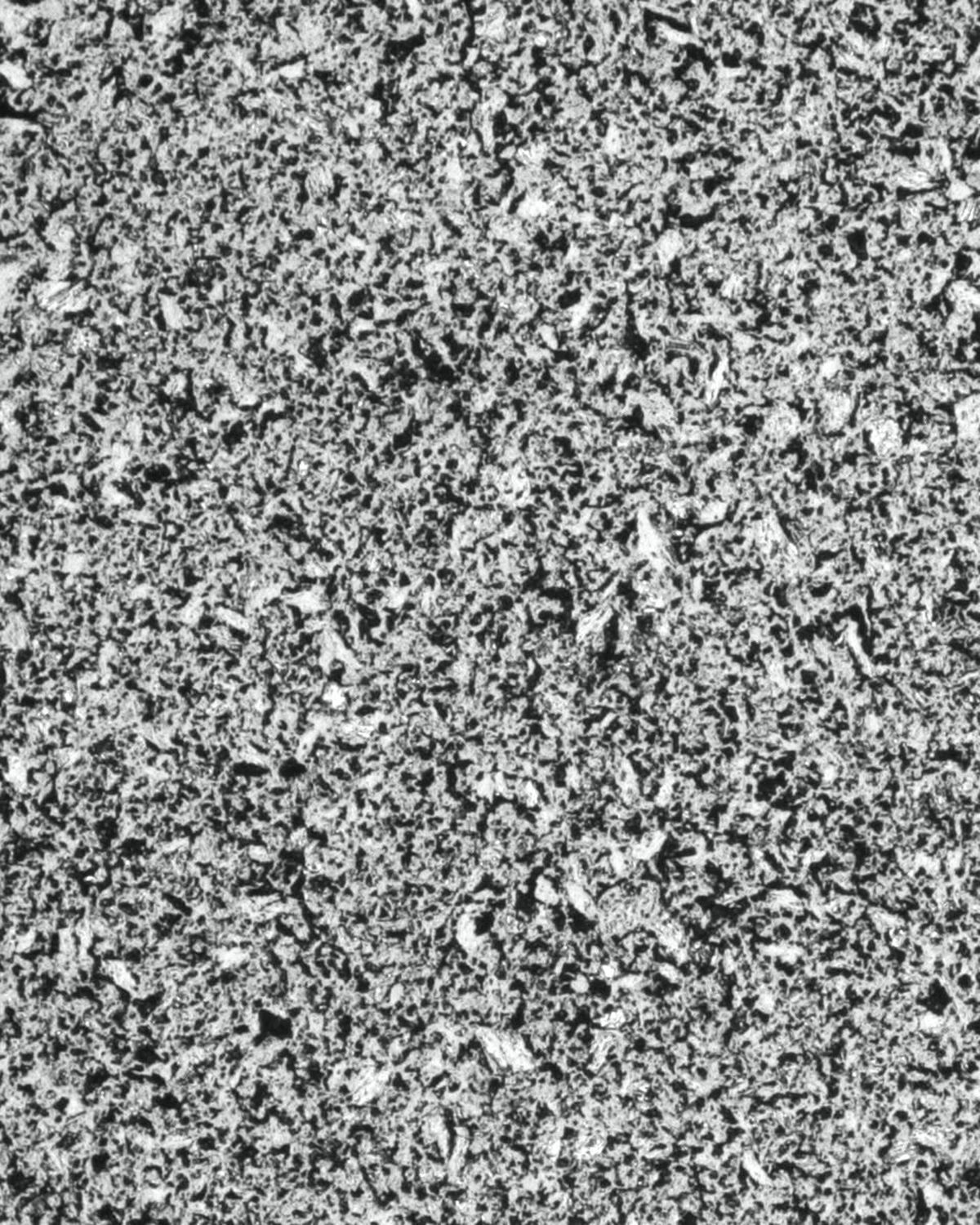

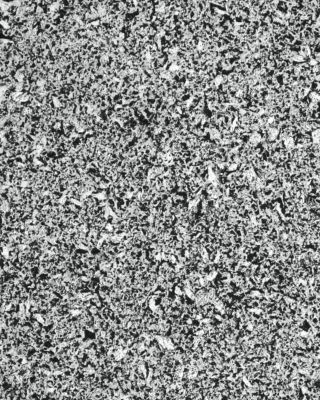

An isotropic, Superfine graphite providing good strength, surface finish, and wear resistance.

  • Average particle size of less than 10 microns providing good strength, surface finish, and resistance to damage
  • Excellent metal removal rate improves throughput
  • Good resistance to wear increases time between replacements
  • Provides excellent repeatability from electrode to electrode and from job to job

Available for order as billets, semi-finished rods, blocks, and plates.

  • Read More Read Less

Interested in EDM-200 graphite?

Contact Us

Interested in EDM-200 graphite?

Contact Us

Interested in EDM-200 graphite?

Contact Us

Applications

  • Structural ribs
  • Roughing and finishing electrodes
  • Large feature mold
  • High strength, larger electrodes

Specifications

Average particle size
 10 µm
Flexural strength 9,000 psi (635 kg/cm²)
Compressive strength 15,500 psi (1,075 kg/cm²)
Hardness 68 shore
Electrical resistivity 580 µΩin (14.7 µΩm)
