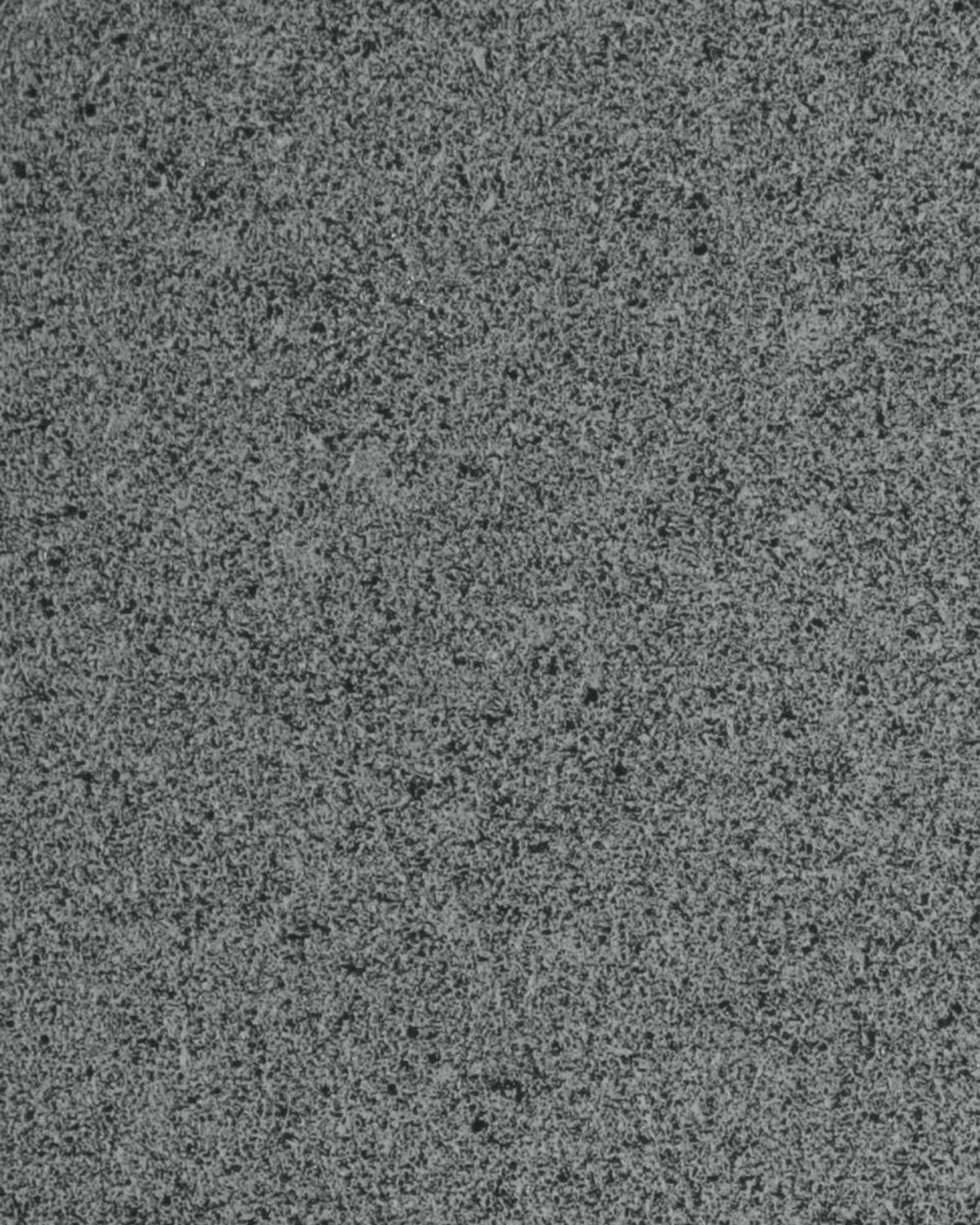

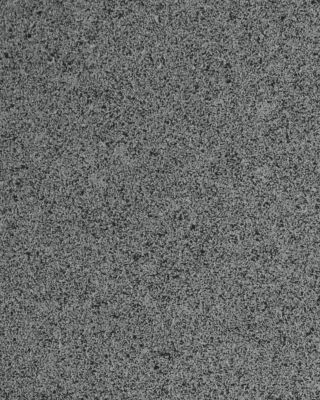

AXZ-5Q Graphite

Our AXZ-5Q graphite is a highly porous, low-density graphite grade that is well suited for applications in the air bearing market or anywhere lower density and/or higher airflow is required.

  • Average particle size of less than 5 microns provides high strength and resistance to damage
  • Natural lubrication properties reduces wear to improve product lifetime
  • Inherent porosity creates necessary airflow when used in air bearing applications
  • Ability to be post processed to enhance a multitude of material properties to fit your applications

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

  • Read More Read Less

Interested in AXZ-5Q graphite

Contact Us

Interested in AXZ-5Q graphite

Contact Us

Interested in AXZ-5Q graphite

Contact Us

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Applications

  • Industrial
  • Ultrasound

Specifications

Particle size 5 µm (200 µin)
Pore size 0.7 µm (28 µin)
Total porosity 26% volume
Open porosity 90% of total
Apparent density 1.66 g/cm3 (0.059 lb/in3)
Compressive strength 103 MPa (15,000 psi)
Flexural strength1 52 MPa (7,500 psi)
Tensile strength2 34 MPa (5,000 psi)
Shore hardness 69
Electrical resistivity 2030 µΩ-cm (800 µΩ-in)
Thermal conductivity 70 W/m-K (40 Btu-ft/hr/ft2°F)
Oxidation threshold3 440°C (820°F)

1Measured using four-point bend method. 2Estimated at 70% of flexural strength. 3Temperature that results in 1% wt. loss in 24 hours. Oxidation threshold increases by approximately 100°C if graphite is purified. Test sample size equals 0.5" x 0.5" x 1.0".
