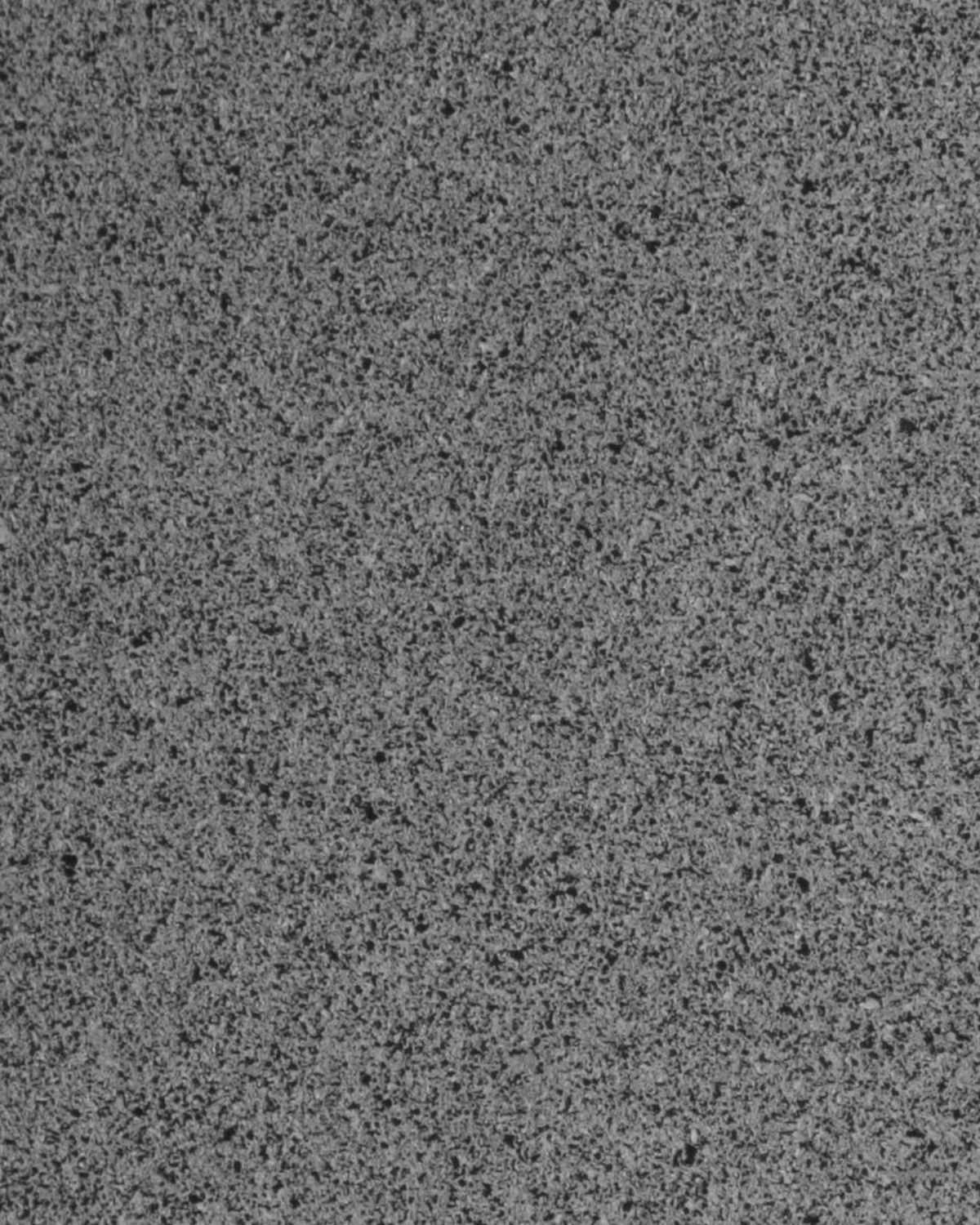

AXM-5Q Graphite


Applications


  • Industrial
  • Ultrasonic

Specifications


Particle size 5 µm (200 µin)
Pore size 0.8 µm (32 µin)
Total porosity 23% volume
Open porosity 85% of total
Apparent density 1.73 g/cm3 (0.062 lb/in3)
Compressive strength 124 MPa (18,000 psi)
Flexural strength1 69 MPa (10,000 psi)
Tensile strength2 48 MPa (7,000 psi)
Shore hardness 72
Electrical resistivity 1650 µΩ-cm (650 µΩ-in)
Thermal conductivity 88 W/m-K (50 Btu-ft/hr/ft2°F)
Oxidation threshold3 460°C (860°F)

1Measured using four-point bend method. 2Estimated at 70% of flexural strength. 3Temperature that results in 1% wt. loss in 24 hours. Oxidation threshold increases by approximately 100°C if graphite is purified. Test sample size equals 0.5" x 0.5" x 1.0".

Documentation


Grade Chart

Industrial Graphite Grades Table

Brochure

Graphite Properties and Characteristics

Manual

Industrial Material Solutions
