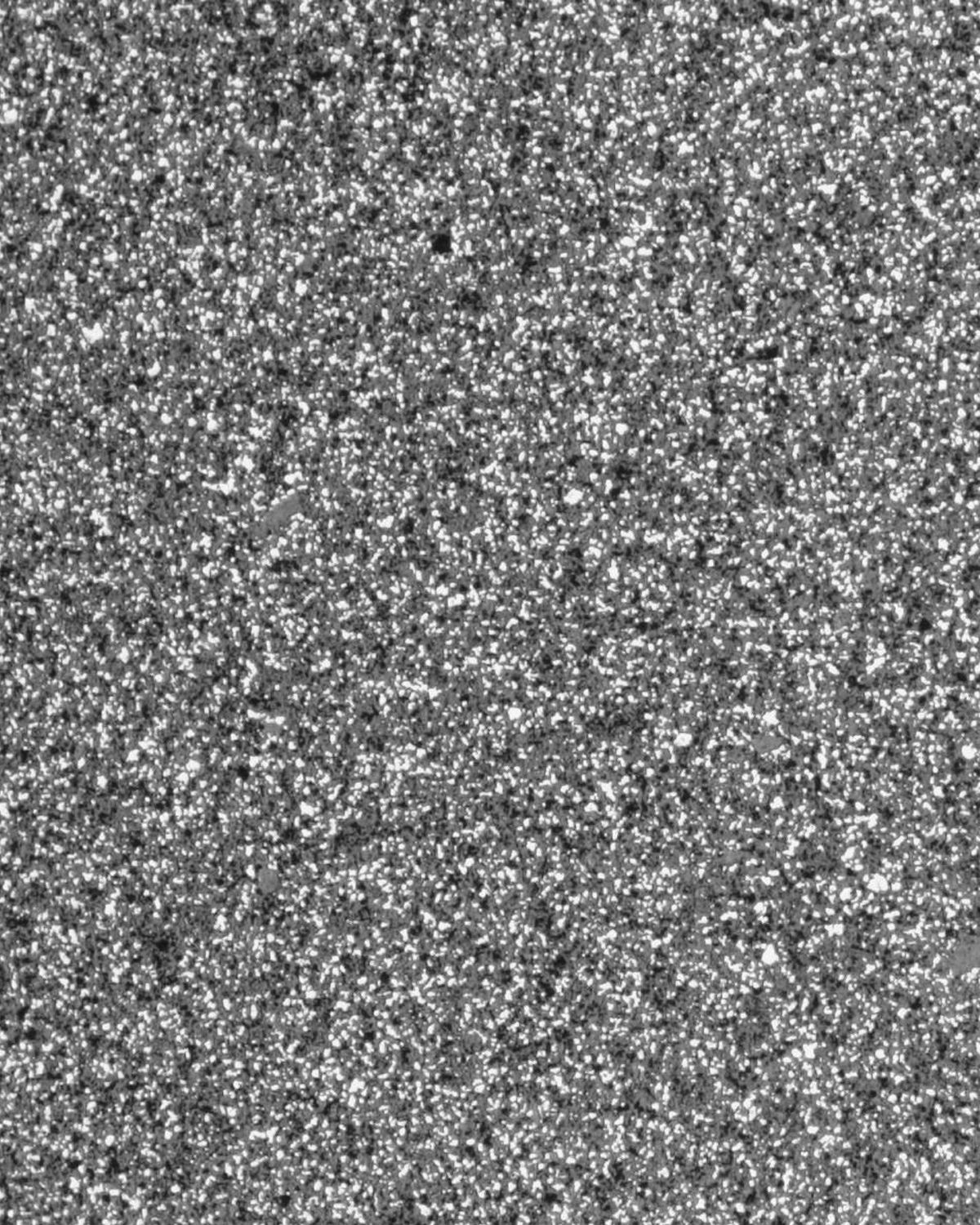

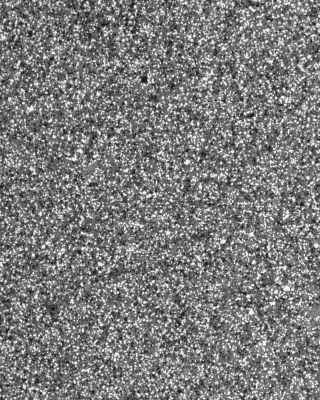

AXF-5QC Graphite

Impregnating our AXF-5Q graphite with copper greatly increases the material's compressive strength and reduces its electrical resistivity and friction coefficient at operating temperatures below 300°C.

  • Average particle size of less than 5 microns provides high strength and resistance to damage
  • Copper impregnation increases product lifetime reduces replacement needs
  • Fine surface finish creates parts with precision details
  • Low friction coefficient is ideal for sliding friction or high-load applications at relatively low temperatures
  • We can enhance this material with our post-processing options

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

  • Read More Read Less

Interested in AXF-5QC graphite?

Contact Us

Interested in AXF-5QC graphite?

Contact Us

Interested in AXF-5QC graphite?

Contact Us

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Applications

  • Air bearings
  • Aerospace
  • Satellite optics
  • Hot press dies
  • Furnace components
  • Crucible materials

Specifications

Particle size
 5 µm (200 µin)
Apparent density 3.12 g/cc (0.1120 lb/in3)
Compressive strength 210 N/mm2 (30,500 psi)
Flexural strength 117 N/mm2 (17,000 psi)
Hardness 64 SSH
Electrical resistivity 250 µ·ohm·cm (100 µ·ohm·in)
Coefficient of thermal expansion 8.7 microns/m°C (4.8 µ·in/in°F)
Thermal conductivity 175 watts/m K (100 BTU·ft/hr·ft2°F)
