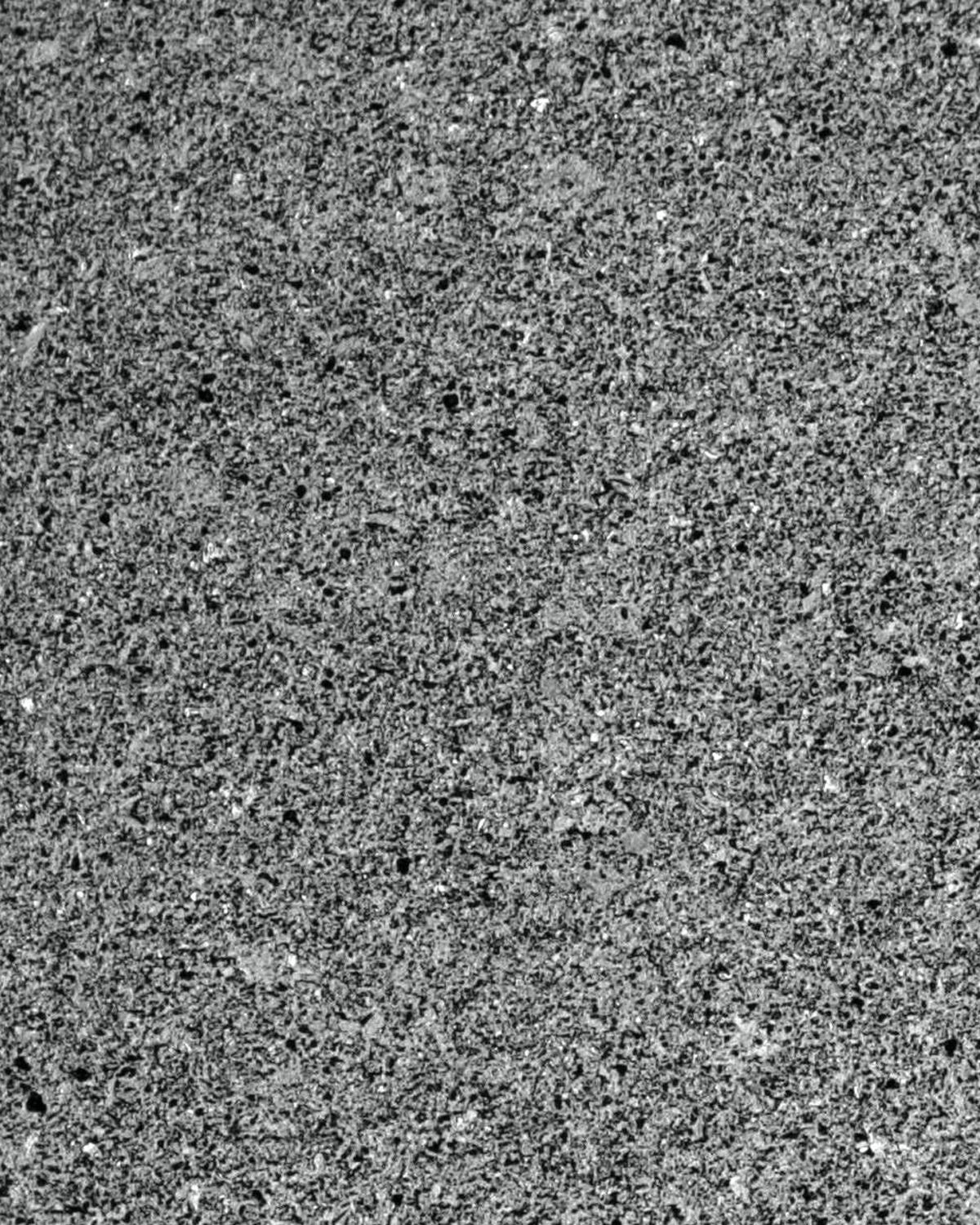

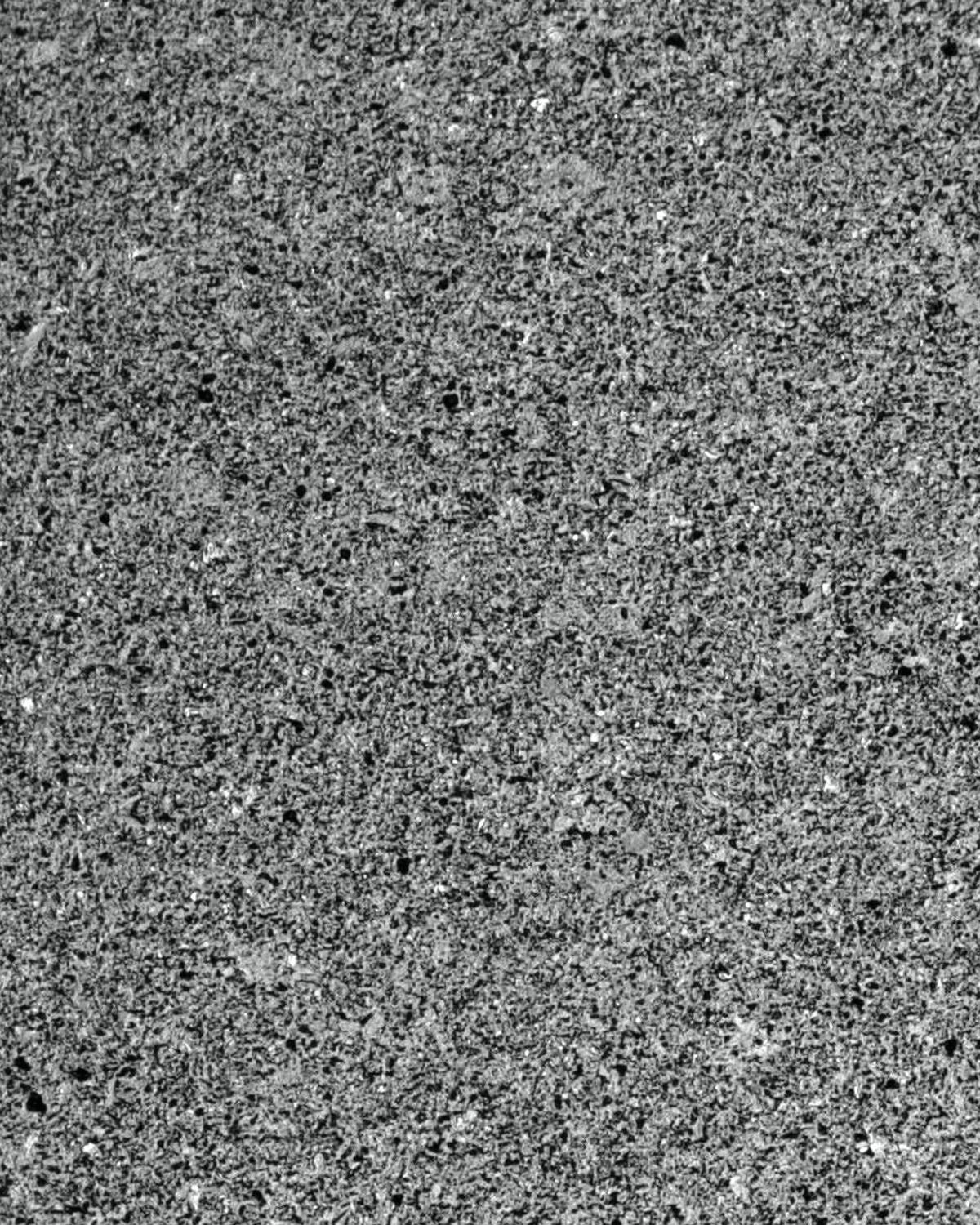

ACF-10Q Graphite

ACF-10Q graphite is our 5 micron, high-hardness material minimizes fretting wear and maximizes time between overhauls. It is ideally suited for industrial applications that expose the material to mechanical wear.

  • Average particle size of less than 5 microns provides high strength and resistance to damage
  • Optimal balance of machinability for fine details and high hardness resists damage during production runs
  • High resistance to wear minimizes replacement needs and reduces cost of ownership
  • Ability to be post processed to enhance a multitude of material properties to fit your applications

Our graphite grades are available as semi-finished rods, blocks, plates, and fully machined parts.

  • Read More Read Less

Interested in ACF-10Q graphite?

Contact Us

Interested in ACF-10Q graphite?

Contact Us

Interested in ACF-10Q graphite?

Contact Us

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Interested in Post Processing Options?

Learn More

Applications

  • Aerospace
  • Industrial
  • Ultrasound

Specifications

Particle size 5 µm (200 µin)
Pore size 0.8 µm (32 µin)
Total porosity 21% of volume
Open porosity 75% of total
Apparent density 1.77 g/cm3 (0.063 lb/in3)
Compressive strength 186 MPa (27,000 psi)
Flexural strength1 97 MPa (14,000 psi)
Tensile strength2 69 MPa (10,000 psi)
Shore hardness 95
Electrical resistivity 2460 µΩ-cm (970 µΩ-in)
Thermal conductivity 60 W/m-K (35 Btu-ft/hr/ft2°F)
Oxidation threshold 470°C (880°F)

1Measured using four-point bend method. 2Estimated at 70% of flexural strength. 3Temperature that results in 1% wt. loss in 24 hours. Oxidation threshold increases by approximately 100°C if graphite is purified. Test sample size equals 0.5" x 0.5" x 1.0".
